Name: Pressure Planes

Display Field: ELEVATION_CUTOFF

Type: Feature Layer

Geometry Type: esriGeometryPolygon

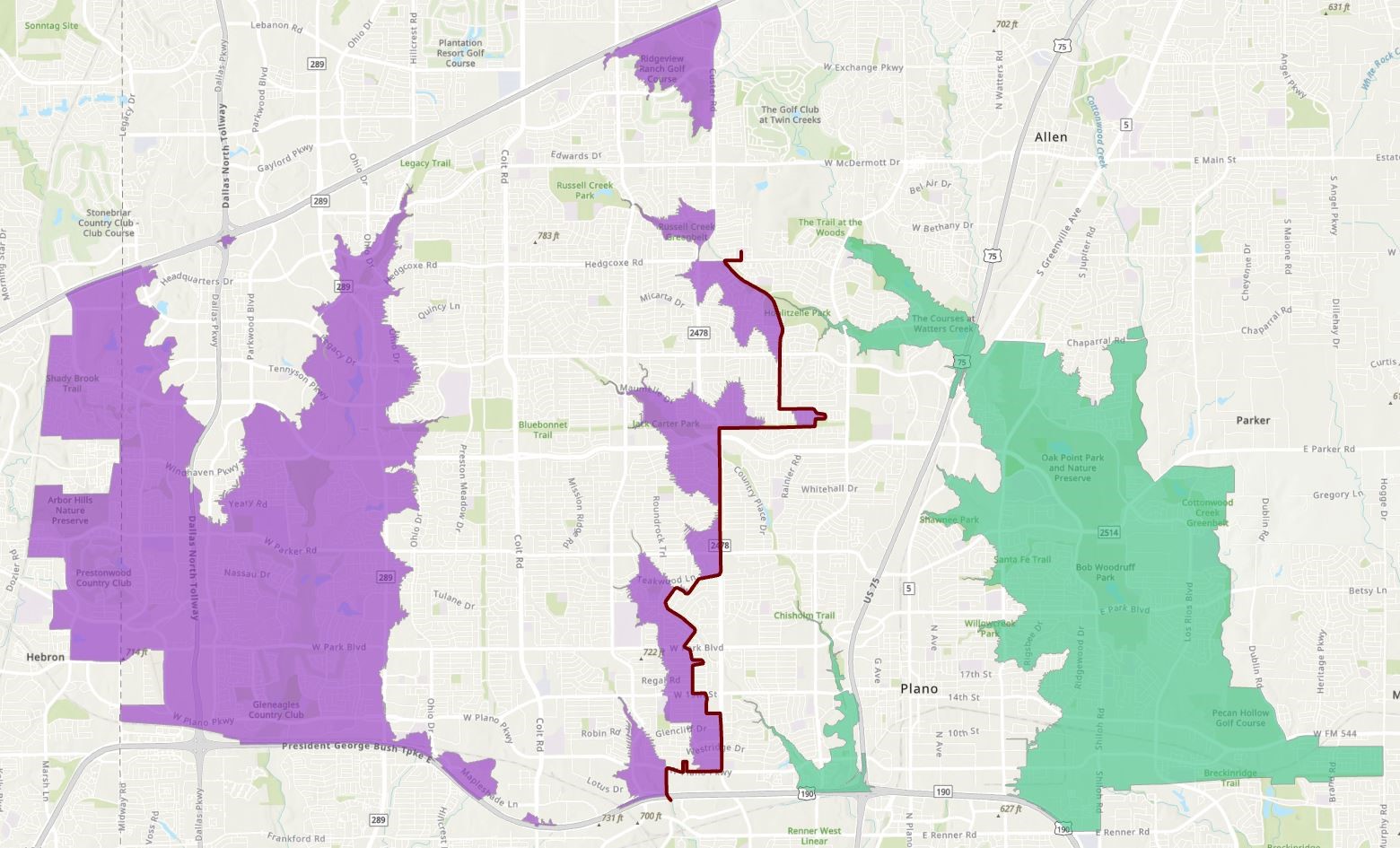

Description: The pressure zones in Plano indicate areas where water pressure may exceed 80 psi. The elevation limit to the east of the water separation line is 610 feet, while the limit to the west is 690 feet. This data, derived from contours based on 2024 LiDAR, was created in January 2025.

Copyright Text: Created by BI/GIS team following the guidelines provided by Public Works.

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2464005.889942974
YMin: 7049807.721253306
XMax: 2546885.091638297
YMax: 7096891.198280394
Spatial Reference: 102738  (2276)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: ELEVATION_CUTOFF
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 610
  Label: Elevation below 610 ft
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [115, 0, 76, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 690
  Label: Elevation below 690 ft
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 38, 115, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 40
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID_1 ( type: esriFieldTypeOID, alias: OBJECTID_1 )
• ELEVATION_CUTOFF ( type: esriFieldTypeSmallInteger, alias: ELEVATION_CUTOFF )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
