Name: Roads Alleys

Display Field: STREET_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Street and Alley centerlines in City of Plano or adjacent to it, both public and some private. Updated monthly.

Copyright Text: Created and maintained by the Plano Land Records Division.

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2465864.986606136
YMin: 7045259.373193696
XMax: 2548662.550777495
YMax: 7097652.298424631
Spatial Reference: 102738  (2276)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [122, 51, 150, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• PRE_DIR ( type: esriFieldTypeString, alias: PRE_DIR, length: 4 , Coded Values: [E: EAST] , [N: NORTH] , [S: SOUTH] , ...6 more... )
• STREET_NAME ( type: esriFieldTypeString, alias: STREET_NAME, length: 30 )
• STREET_TYPE ( type: esriFieldTypeString, alias: STREET_TYPE, length: 5 , Coded Values: [ALY: ALLEY] , [ANX: ANNEX] , [ARC: ARCADE] , ...78 more... )
• RD_SPEED ( type: esriFieldTypeSmallInteger, alias: RD_SPEED , Coded Values: [10: 10 mph] , [30: 30 mph] , [35: 35 mph] , ...6 more... )
• PRIVATESTREET ( type: esriFieldTypeString, alias: PRIVATESTREET, length: 4 , Coded Values: [Y: Yes] , [N: No] )
• DIVIDED ( type: esriFieldTypeString, alias: DIVIDED, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• WIDTH ( type: esriFieldTypeSmallInteger, alias: WIDTH )
• SUFFIX ( type: esriFieldTypeString, alias: SUFFIX, length: 4 , Coded Values: [NB: Northbound] , [SB: Southbound] , [EB: Eastbound] , ...5 more... )
• CITYCODE ( type: esriFieldTypeString, alias: CITYCODE, length: 50 , Coded Values: [1: CARROLLTON] , [1085: DALLAS] , [1413: FAIRVIEW] , ...20 more... )
• LANES ( type: esriFieldTypeSmallInteger, alias: LANES )
• FROMLEFT ( type: esriFieldTypeInteger, alias: Left From Address )
• TOLEFT ( type: esriFieldTypeInteger, alias: Left To Address )
• FROMRIGHT ( type: esriFieldTypeInteger, alias: Right From Address )
• TORIGHT ( type: esriFieldTypeInteger, alias: Right To Address )
• ROADCLASS ( type: esriFieldTypeString, alias: Road Class, length: 20 , Coded Values: [AAAA: ALLEY] , [R2U: R2U] , [S5U: S5U] , ...13 more... )
• POST_DIR ( type: esriFieldTypeString, alias: Post Address Direction, length: 4 , Coded Values: [E: EAST] , [N: NORTH] , [S: SOUTH] , ...6 more... )
• FULLNAME ( type: esriFieldTypeString, alias: Full Road Name, length: 125 )
• MUNILEFT ( type: esriFieldTypeString, alias: Municipality on Left, length: 100 , Coded Values: [ALLEN: ALLEN] , [CARROLLTON: CARROLLTON] , [DALLAS: DALLAS] , ...9 more... )
• MUNIRIGHT ( type: esriFieldTypeString, alias: Municipality on Right, length: 100 , Coded Values: [ALLEN: ALLEN] , [CARROLLTON: CARROLLTON] , [DALLAS: DALLAS] , ...9 more... )
• ONEWAYDIR ( type: esriFieldTypeString, alias: One Way Indicator, length: 10 , Coded Values: [B: Two Way Street] , [F: From Start Node to End Node] , [T: From End Node to Start Node] )
• ZIPLEFT ( type: esriFieldTypeString, alias: Zip on Left, length: 5 , Coded Values: [75002: 75002] , [75007: 75007] , [75010: 75010] , ...18 more... )
• ZIPRIGHT ( type: esriFieldTypeString, alias: Zip on Right, length: 5 , Coded Values: [75002: 75002] , [75007: 75007] , [75010: 75010] , ...18 more... )
• OWNEDBY ( type: esriFieldTypeSmallInteger, alias: Owned By , Coded Values: [-1: Private] , [-2: Other] , [1: City of Plano] )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

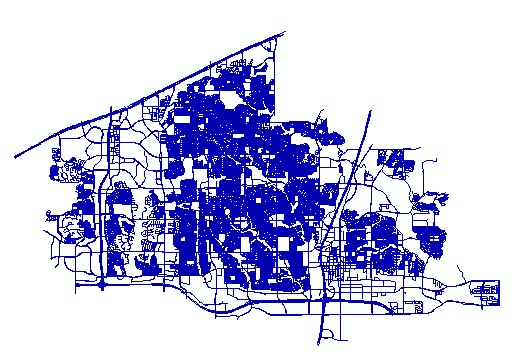

  Iteminfo   Thumbnail   Metadata
